Bloomsbury Chamfered Antique Mahogany 1 gang 20AX Intermediate Toggle Polished Brass Fluted Dome/White Collar

Description

Width	88.0mm
Height	88.0mm
Depth	14.5mm
InsertType	1 gang 20AX Intermediate Toggle
Insert_Finish	Polished Brass Fluted Dome/White Collar
Uf_HAM_Plate_Range	Bloomsbury Chamfered
PlateFinish	Bloomsbury Chamfered Antique Mahogany
EAN_13_Barcode	5.03E+12

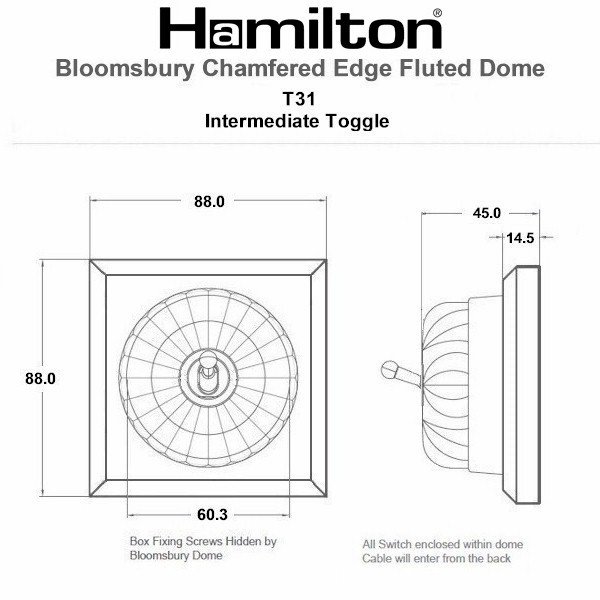

Dimensions_Nominal	Collar and Dome Depth = 45.0mm, Single: Height = 88.0mm Width = 88.0mm Depth = 14.5mm Plinth
Switched_Poles	Single
Current_Rating	20AX
Max_Load	20 Amp inductive
Mains_Frequency	50Hz
Contact_Gap_Minimum	3mm
Terminal_Capacity_1	5x1mm²
Terminal_Capacity_2	4×1.5mm²
Terminal_Capacity_3	2×2.5mm²
Terminal_Capacity_4	2x4mm² Multi-strand
Terminal_Capacity_5	1x6mm²
Earth_Terminal_Capacity_1	6x1mm²
Earth_Terminal_Capacity_2	5×1.5mm²
Earth_Terminal_Capacity_3	3×2.5mm²
Earth_Terminal_Capacity_4	2x4mm² Multi-Strand
Earth_Terminal_Capacity_5	1x6mm²
Product_Class1	Double insulation (Cl 10.3.2 of BS60669)
Ambient_Operating_Temp	-5° to +40°C
Recommended_Location	Internal Use Only
Max_Installation_Altitude	2000m
Standard_Approval	BS EN 60669-1
Commodity_Code	85365080
Luckins_TSI	391578720
unit_weight	0
Uf_HAMInnerBoxQty	1
Uf_OuterBoxQty	1
Blms_Plinth_Cllar_Dome_Dpth	45.0mm
Box_Fixing_Hole_Centres	60.3mm
Grid_Fixing_Hole_Centres	N/A
Uf_HAMPlateFinish	Antique Mahogany
Uf_HAMFrameFinish	n/a
WEB_InsertType	Intermediate
WEB_NumberofGangs	1
MainInsertColour	Polished Brass Fluted Dome
TrimColour	White Collar
WoodEdge	Chamfered
Fixing_Hole_Centres	Box Fixing = 60.3mm Grid Fixing = N/A
Min_Wall_Box_Depth	25mm
IP_Rating	IP2XD
Plate_Finish	Antique Mahogany
WEB_Fixing	Concealed
Voltage	220/250V AC
