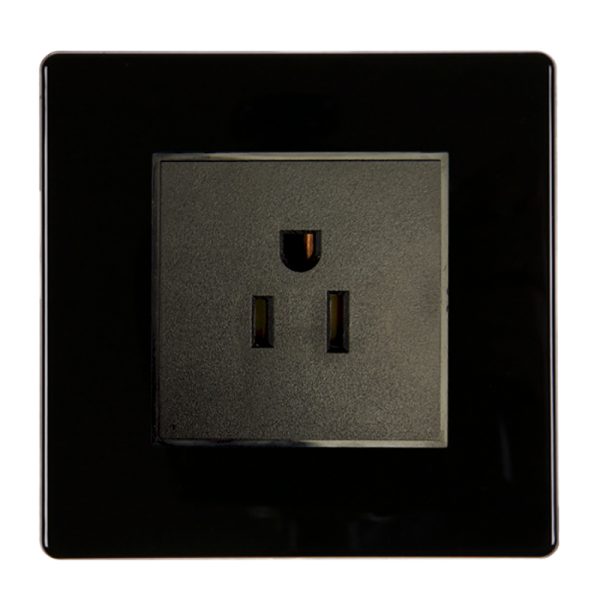

Hartland CFX Colours Jet Black 1 gang 15A 110V AC American Unswitched Socket Black

Description

Width	86.0mm
Height	86.0mm
Depth	5.0mm
InsertType	1 gang 15A 110V AC American Unswitched Socket
Insert_Finish	Black
Uf_HAM_Plate_Range	Hartland CFX Colours
PlateFinish	Hartland CFX Colours Jet Black
EAN_13_Barcode	5.0175E+12
Dimensions_Nominal	Single: Height = 86.0mm Width = 86.0mm Depth = 5.0mm
Switched_Poles	None
Current_Rating	15 Amp
Max_Load	15 Amp
Mains_Frequency	60Hz
Contact_Gap_Minimum	None
Terminal_Capacity_1	3×2.5mm²
Terminal_Capacity_2	2x4mm²
Terminal_Capacity_3	1x6mm² Multi-strand
Product_Class1	Face plate must be earthed
Ambient_Operating_Temp	-5° to +40°C
Recommended_Location	Internal Use Only
Max_Installation_Altitude	2000m
Standard_Approval	BS EN ISO 5733 + IEC 60884-1
Additional_Notes	Shuttered :Yes
Commodity_Code	85363010
Luckins_TSI	394187354
unit_weight	0
Uf_HAMInnerBoxQty	10
Uf_OuterBoxQty	100
Box_Fixing_Hole_Centres	60.3mm
Grid_Fixing_Hole_Centres	CFX Push
Uf_HAMPlateFinish	Jet Black
Uf_HAMFrameFinish	n/a
WEB_InsertType	American Socket
WEB_NumberofGangs	1
MainInsertColour	Black
TrimColour	n/a
Fixing_Hole_Centres	Box Fixing = 60.3mm Grid Fixing = CFX Push
Minimum_Wall_Box_Depth	35mm
IP_Rating	IP2XD
Plate_Finish	Jet Black
Concealed	Concealed
Voltage	110V AC
