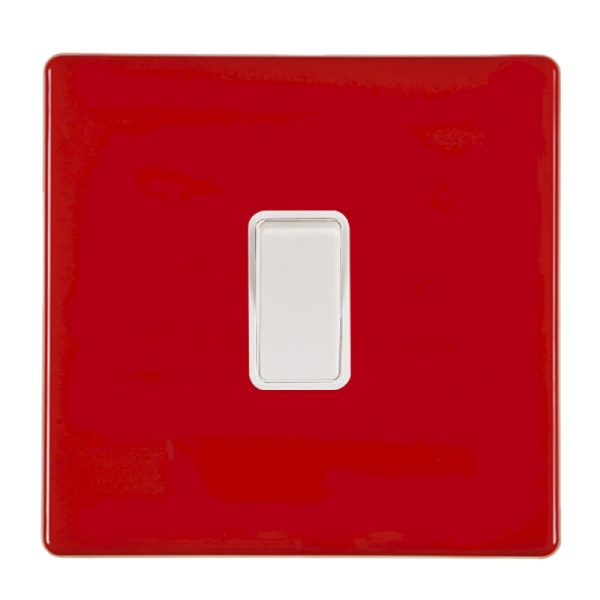

Hartland CFX Colours Pillar Box Red 1 gang 20AX Intermediate Rocker White/White

Description

Width	86.0mm
Height	86.0mm
Depth	5.0mm
InsertType	1 gang 20AX Intermediate Rocker
Insert_Finish	White/White
Uf_HAM_Plate_Range	Hartland CFX Colours
PlateFinish	Hartland CFX Colours Pillar Box Red
EAN_13_Barcode	5.0175E+12
Dimensions_Nominal	Single: Height = 86.0mm Width = 86.0mm Depth = 5.0mm
Switched_Poles	Single
Current_Rating	20AX
Max_Load	20 Amp inductive
Mains_Frequency	50Hz
Contact_Gap_Minimum	3mm
Terminal_Capacity_1	5x1mm²
Terminal_Capacity_2	4×1.5mm²
Terminal_Capacity_3	2×2.5mm²
Terminal_Capacity_4	2x4mm² Multi-strand
Terminal_Capacity_5	1x6mm²
Earth_Terminal_Capacity_1	6x1mm²
Earth_Terminal_Capacity_2	5×1.5mm²
Earth_Terminal_Capacity_3	3×2.5mm²
Earth_Terminal_Capacity_4	2x4mm² Multi-Strand
Earth_Terminal_Capacity_5	1x6mm²
Product_Class1	Must be earthed
Ambient_Operating_Temp	-5° to +40°C
Recommended_Location	Internal Use Only
Max_Installation_Altitude	2000m
Standard_Approval	BS EN 60669-1
Commodity_Code	85365080
Luckins_TSI	394188609
unit_weight	0
Uf_HAMInnerBoxQty	10
Uf_OuterBoxQty	100
Box_Fixing_Hole_Centres	60.3mm
Grid_Fixing_Hole_Centres	CFX Push
Uf_HAMPlateFinish	Pillar Box Red
Uf_HAMFrameFinish	n/a
WEB_InsertType	Intermediate
WEB_NumberofGangs	1
MainInsertColour	White
TrimColour	White
Fixing_Hole_Centres	Box Fixing = 60.3mm Grid Fixing = CFX Push
Minimum_Wall_Box_Depth	25mm
IP_Rating	IP2XD
Plate_Finish	Pillar Box Red
Concealed	Concealed
Voltage	220/250V AC
