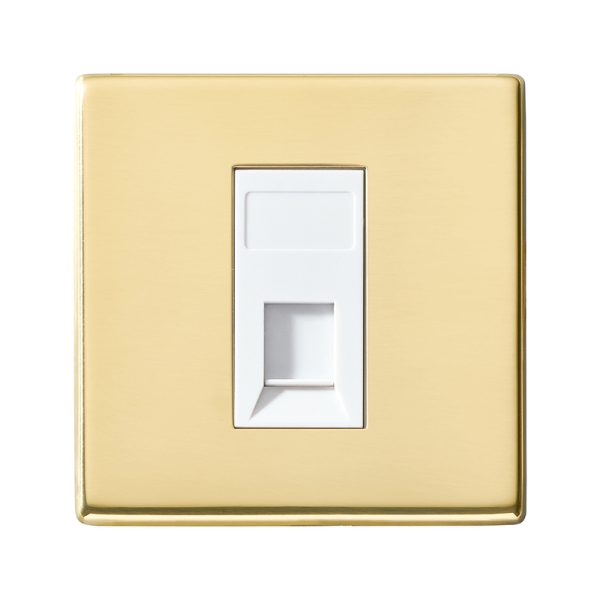

Hartland CFX Polished Brass 1 gang RJ12 Outlet - Unshielded White

Description

Hartland CFX Polished Brass 1 gang RJ12 Outlet – Unshielded White

Width	86.0mm
Height	86.0mm
Depth	5.0mm
InsertType	1 gang RJ12 Outlet – Unshielded
Insert_Finish	White
Uf_HAM_Plate_Range	Hartland CFX
PlateFinish	Hartland CFX Polished Brass
EAN_13_Barcode	5.0175E+12
Dimensions_Nominal	Single: Height = 86.0mm Width = 86.0mm Depth = 5.0mm
Switched_Poles	N/A
Current_Rating	n/a
Contact_Gap_Minimum	N/A
Earth_Terminal_Capacity_1	5x1mm²
Earth_Terminal_Capacity_2	4 x 1.5mm2
Earth_Terminal_Capacity_3	3 x 2.5mm2
Earth_Terminal_Capacity_4	1 x 4mm2 Multi-strand
Earth_Terminal_Capacity_5	1 x 6mm2
Product_Class1	Must be earthed (ref BS7671 415.2.1)
Ambient_Operating_Temp	-5° to +40°C
Recommended_Location	Internal Use Only
Max_Installation_Altitude	2000m
Standard_Approval	N/A
EuroFix_Additional_Notes	Can be used as either RJ11 (4 wires) or RJ12 (6 wires)
Commodity_Code	85176990
Luckins_TSI	388235827
unit_weight	0
Uf_HAMInnerBoxQty	10
Uf_OuterBoxQty	100
Box_Fixing_Hole_Centres	60.3mm
Grid_Fixing_Hole_Centres	CFX Clips
Uf_HAMPlateFinish	Polished Brass
Uf_HAMFrameFinish	n/a
WEB_InsertType	RJ12 – Unshielded
WEB_NumberofGangs	1
MainInsertColour	White
TrimColour	n/a
Fixing_Hole_Centres	Box Fixing = 60.3mm Grid Fixing = CFX Clips
Minimum_Wall_Box_Depth	35mm
IP_Rating	IP2XD
Plate_Finish	Polished Brass
Concealed	Concealed
