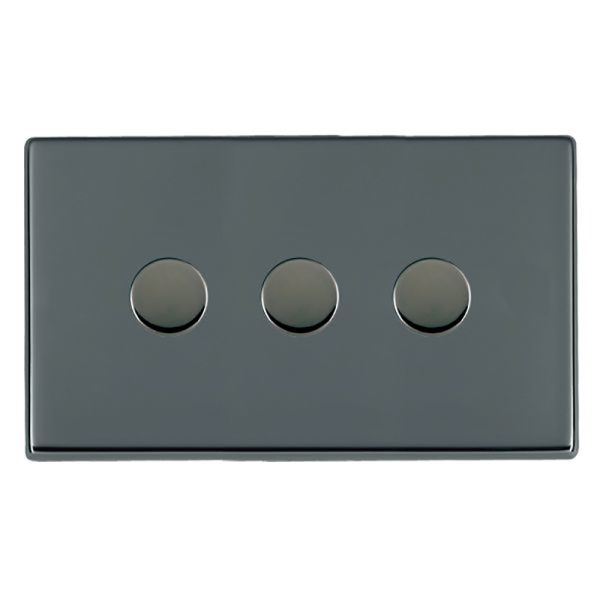

Hartland G2 Black Nickel 3g Wi-Fi Rotary Master LED Dimmer Black Nickel - Rated at 250W/VA in Trailing Edge (100W/VA Leading Edge)

Description

Hartland G2 Black Nickel 3g Wi-Fi Rotary Master LED Dimmer Black Nickel – Rated at 250W/VA in Trailing Edge (100W/VA Leading Edge)

Width	144.4mm
Height	87.4mm
Depth	4.65mm
Wattage	5-250W/VA
InsertType	1 gang 250W/VA Wi-Fi Rotary Master LED Trailing Edge Dimmer
Insert_Finish	Black Nickel
Uf_HAM_Plate_Range	Hartland G2
PlateFinish	Hartland G2 Black Nickel
EAN_13_Barcode	5.05275E+12
Dimensions_Nominal	Double: Height = 87.4mm Width = 144.4mm Depth = 4.65mm
Switched_Poles	Single
Current_Rating	1.1 Amp
Max_Load	250W/VA Trailing 100W/VA Leading
Mains_Frequency	50Hz
Terminal_Capacity_1	2X1mm²
Terminal_Capacity_2	2×1.5mm²
Earth_Terminal_Capacity_1	5x1mm²
Earth_Terminal_Capacity_2	4×1.5mm²
Earth_Terminal_Capacity_3	3×2.5mm²
Earth_Terminal_Capacity_4	1x4mm² Multi-strand
Earth_Terminal_Capacity_5	1x6mm²
Product_Class1	Face plate must be earthed
Ambient_Operating_Temp	-5°C to +40°C
Recommended_Location	Internal Use Only
Max_Installation_Altitude	2000m
Standard_Approval	BS EN 60669-2-1
Additional_Notes	Trailing Edge & Leading Edge Dimmer
Frequencies_1	Wi-Fi 2.4GHz
Commodity_Code	85365005
Luckins_TSI	436545061
unit_weight	0
Uf_HAMInnerBoxQty	5
Uf_OuterBoxQty	50
Box_Fixing_Hole_Centres	120.6mm
Uf_HAMPlateFinish	Black Nickel
Uf_HAMFrameFinish	n/a
WEB_InsertType	Rotary 2 Way
WEB_NumberofGangs	1
MainInsertColour	Black Nickel
TrimColour	n/a
Fixing_Hole_Centres	Box Fixing = 120.6mm
Minimum_Wall_Box_Depth	35mm
IP_Rating	IP2XD
Plate_Finish	Black Nickel
Concealed	Concealed
Voltage	230V AC
