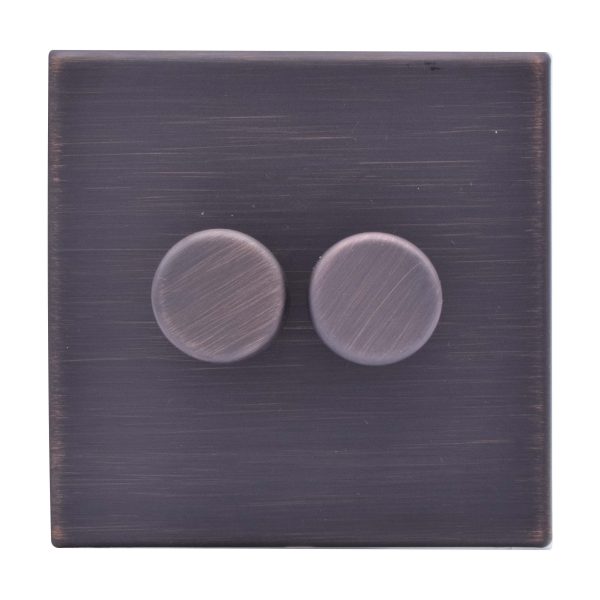

Hartland G2 Etrium Bronze 2 gang 100W LED 2 Way Push On/Off Rotary Dimmer Etrium Bronze

Description

Width	87.4mm
Height	87.4mm
Depth	4.65mm
Wattage	5-70W Per Gang
InsertType	2 gang 100W LED Trailing/Leading Edge Push On/Off Rotary 2 Way Switching Dimmer
Insert_Finish	Etrium Bronze
Uf_HAM_Plate_Range	Hartland G2
PlateFinish	Hartland G2 Etrium Bronze
EAN_13_Barcode	5.05116E+12
Dimensions_Nominal	Single: Height = 87.4mm Width = 87.4mm Depth = 4.65mm
Switched_Poles	Single
Current_Rating	0.3A Per Gang
Max_Load	5-70W Per Gang
Mains_Frequency	50Hz
Terminal_Capacity_1	2X1mm²
Terminal_Capacity_2	2×1.5mm²
Earth_Terminal_Capacity_1	5x1mm²
Earth_Terminal_Capacity_2	4×1.5mm²
Earth_Terminal_Capacity_3	3×2.5mm²
Earth_Terminal_Capacity_4	1x4mm² Multi-strand
Earth_Terminal_Capacity_5	1x6mm²
Product_Class1	Face plate must be earthed
Ambient_Operating_Temp	-5°C to +40°C
Recommended_Location	Internal Use Only
Max_Installation_Altitude	2000m
Standard_Approval	BS EN 60669-2-1
Additional_Notes	Trailing Edge & Leading Edge Dimmer
Commodity_Code	85365005
Luckins_TSI	423821138
unit_weight	0
Uf_HAMInnerBoxQty	5
Uf_OuterBoxQty	50
Box_Fixing_Hole_Centres	60.3mm
Uf_HAMPlateFinish	Etrium Bronze
Uf_HAMFrameFinish	n/a
WEB_InsertType	Rotary 2 Way
WEB_NumberofGangs	2
MainInsertColour	Etrium Bronze
TrimColour	n/a
Fixing_Hole_Centres	Box Fixing = 60.3mm
Minimum_Wall_Box_Depth	35mm
IP_Rating	IP2XD
Plate_Finish	Etrium Bronze
Concealed	Concealed
Voltage	230V AC
