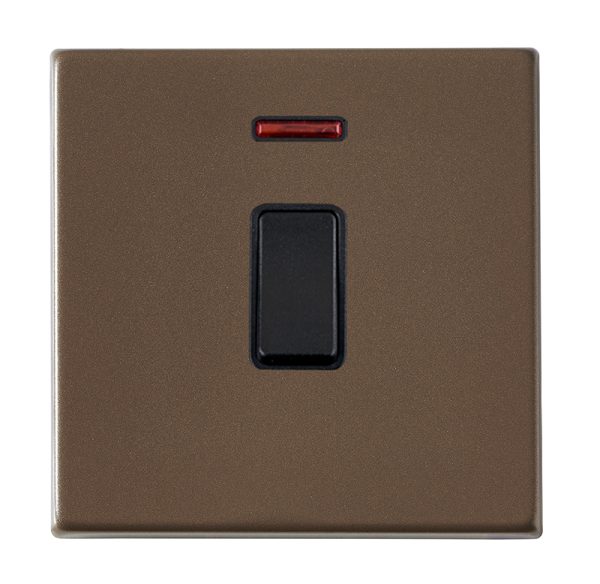

Hartland G2 Richmond Bronze 1 gang 20AX Double Pole Rocker and Neon Black/Black

Description

Width	87.4mm
Height	87.4mm
Weight	129 GR
Depth	4.65mm
InsertType	1 gang 20AX Double Pole Rocker + Neon
Insert_Finish	Black/Black
Uf_HAM_Plate_Range	Hartland G2
PlateFinish	Hartland G2 Richmond Bronze
EAN_13_Barcode	5.05116E+12
Dimensions_Nominal	Single: Height = 87.4mm Width = 87.4mm Depth = 4.65mm
Switched_Poles	Double
Current_Rating	20AX
Max_Load	20 Amp inductive
Mains_Frequency	50Hz
Contact_Gap_Minimum	3mm
Terminal_Capacity_1	3×2.5mm²
Terminal_Capacity_2	2x4mm² Multi-Strand
Terminal_Capacity_3	1x6mm²
Earth_Terminal_Capacity_1	6x1mm²
Earth_Terminal_Capacity_2	5×1.5mm²
Earth_Terminal_Capacity_3	3×2.5mm²
Earth_Terminal_Capacity_4	2x4mm² Multi-Strand
Earth_Terminal_Capacity_5	1x6mm²
Product_Class1	Must be earthed
Ambient_Operating_Temp	-5° to +40°C
Recommended_Location	Internal Use Only
Max_Installation_Altitude	2000m
Standard_Approval	BS EN 60669-1
Commodity_Code	85365080
Luckins_TSI	407519932
unit_weight	129
Uf_HAMInnerBoxQty	10
Uf_OuterBoxQty	100
Box_Fixing_Hole_Centres	60.3mm
Uf_HAMPlateFinish	Richmond Bronze
Uf_HAMFrameFinish	n/a
WEB_InsertType	Double Pole + Neon
WEB_NumberofGangs	1
MainInsertColour	Black
TrimColour	Black
Fixing_Hole_Centres	Box Fixing = 60.3mm
Minimum_Wall_Box_Depth	25mm
IP_Rating	IP2XD
Plate_Finish	Richmond Bronze
Concealed	Concealed
Voltage	220/250V AC
