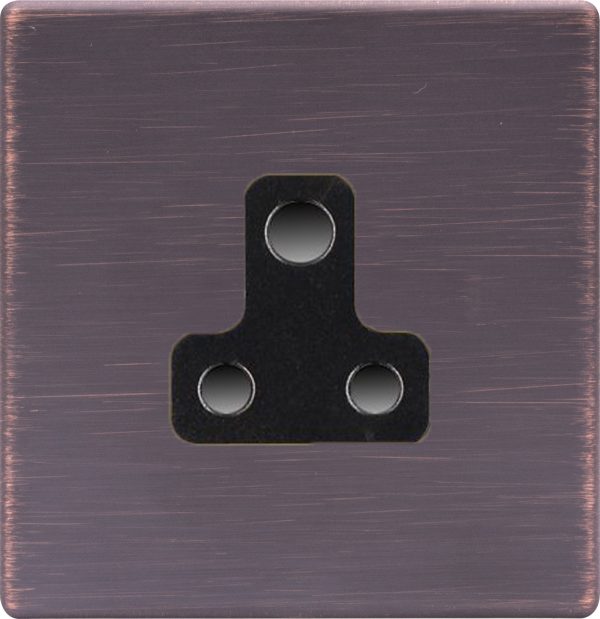

Hartland G2 Etrium Bronze 1 gang 5A Unswitched Socket Black

Description

Width	87.4mm
Height	87.4mm
Weight	105 GR
Depth	4.65mm
InsertType	1 gang 5A Unswitched Socket
Insert_Finish	Black
Uf_HAM_Plate_Range	Hartland G2
PlateFinish	Hartland G2 Etrium Bronze
EAN_13_Barcode	5.05116E+12
Dimensions_Nominal	Single: Height = 87.4mm Width = 87.4mm Depth = 4.65mm
Switched_Poles	None
Current_Rating	5 Amp
Max_Load	5 Amp
Mains_Frequency	50Hz
Contact_Gap_Minimum	None
Terminal_Capacity_1	5 x1mm²
Terminal_Capacity_2	4×1.5mm²
Terminal_Capacity_3	2×2.5mm²
Terminal_Capacity_4	1x4mm²
Earth_Terminal_Capacity_1	5x1mm²
Earth_Terminal_Capacity_2	4 x 1.5mm2
Earth_Terminal_Capacity_3	2 x 2.5mm2
Earth_Terminal_Capacity_4	1 x 4mm2
Product_Class1	Must be earthed
Ambient_Operating_Temp	-5° to +40°C
Recommended_Location	Internal Use Only
Max_Installation_Altitude	2000m
Standard_Approval	BS 546
Additional_Notes	Shuttered: Yes
Commodity_Code	85366990
Luckins_TSI	423823178
unit_weight	105
Uf_HAMInnerBoxQty	10
Uf_OuterBoxQty	100
Box_Fixing_Hole_Centres	60.3mm
Uf_HAMPlateFinish	Etrium Bronze
Uf_HAMFrameFinish	n/a
WEB_InsertType	Unswitched Socket
WEB_NumberofGangs	1
MainInsertColour	Black
TrimColour	n/a
Fixing_Hole_Centres	Box Fixing = 60.3mm
Minimum_Wall_Box_Depth	35mm
IP_Rating	IP2XD
Plate_Finish	Etrium Bronze
Concealed	Concealed
Voltage	220/250V AC
