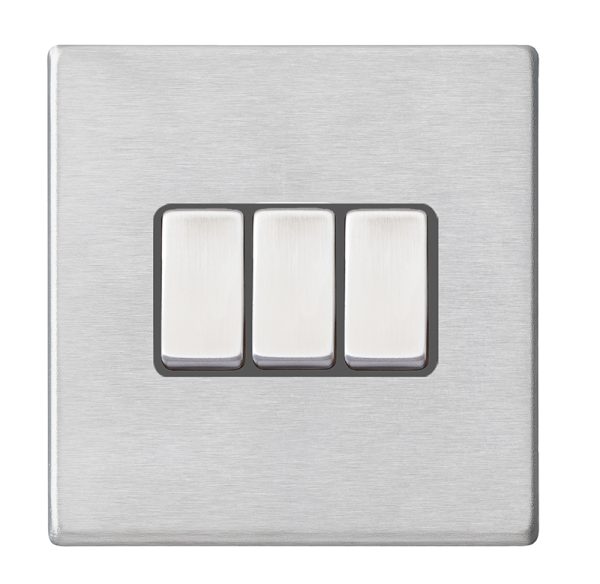

Hartland G2 Satin Steel 3 gang 10AX 2 Way Rocker Satin Steel/Quartz Grey

Description

Width	87.4mm
Height	87.4mm
Weight	118 GR
Depth	4.65mm
InsertType	3 gang 10AX 2 Way Rocker
Insert_Finish	Satin Steel/Quartz Grey
Uf_HAM_Plate_Range	Hartland G2
PlateFinish	Hartland G2 Satin Steel
EAN_13_Barcode	5.05116E+12
Dimensions_Nominal	Single: Height = 87.4mm Width = 87.4mm Depth = 4.65mm
Switched_Poles	Single
Current_Rating	10AX
Max_Load	10 Amp inductive
Mains_Frequency	50Hz
Contact_Gap_Minimum	3mm
Terminal_Capacity_1	5x1mm²
Terminal_Capacity_2	4×1.5mm²
Terminal_Capacity_3	1×2.5mm²
Terminal_Capacity_4	1x4mm² Multi-strand
Terminal_Capacity_5	1x6mm²
Earth_Terminal_Capacity_1	5x1mm²
Earth_Terminal_Capacity_2	4×1.5mm²
Earth_Terminal_Capacity_3	3×2.5mm²
Earth_Terminal_Capacity_4	1x4mm² Multi-strand
Earth_Terminal_Capacity_5	1x6mm²
Product_Class1	Must be earthed
Ambient_Operating_Temp	-5° to +40°C
Recommended_Location	Internal Use Only
Max_Installation_Altitude	2000m
Standard_Approval	BS EN 60669-1
Commodity_Code	85365080
Luckins_TSI	407520743
unit_weight	118
Uf_HAMInnerBoxQty	10
Uf_OuterBoxQty	100
Box_Fixing_Hole_Centres	60.3mm
Uf_HAMPlateFinish	Satin Steel
Uf_HAMFrameFinish	n/a
WEB_InsertType	2 Way
WEB_NumberofGangs	3
MainInsertColour	Satin Steel
TrimColour	Quartz Grey
Fixing_Hole_Centres	Box Fixing = 60.3mm
Minimum_Wall_Box_Depth	25mm
IP_Rating	IP2XD
Plate_Finish	Satin Steel
Concealed	Concealed
Voltage	220/250V AC
