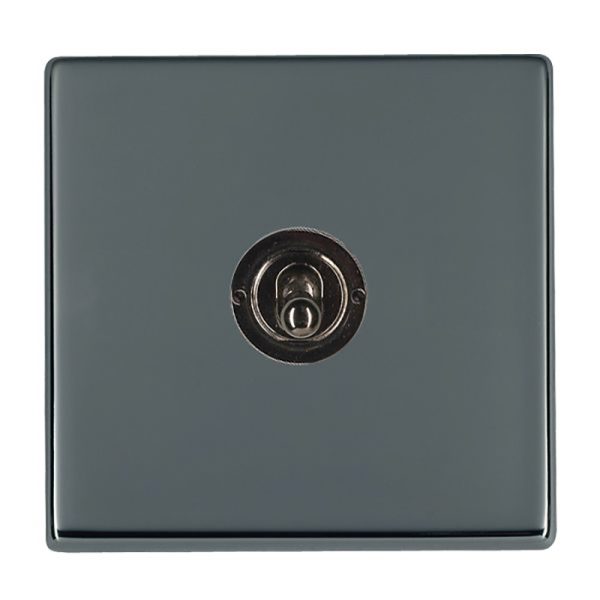

Hartland G2 Black Nickel 1 gang 20AX Intermediate Toggle Black Nickel

Description

Width	87.4mm
Height	87.4mm
Depth	4.65mm
InsertType	1 gang 20AX Intermediate Toggle
Insert_Finish	Black Nickel
Uf_HAM_Plate_Range	Hartland G2
PlateFinish	Hartland G2 Black Nickel
EAN_13_Barcode	5.05116E+12
Dimensions_Nominal	Single: Height = 87.4mm Width = 87.4mm Depth = 4.65mm
Switched_Poles	Single
Current_Rating	20AX
Max_Load	20 Amp inductive
Mains_Frequency	50Hz
Contact_Gap_Minimum	3mm
Terminal_Capacity_1	5x1mm²
Terminal_Capacity_2	4×1.5mm²
Terminal_Capacity_3	2×2.5mm²
Terminal_Capacity_4	2x4mm² Multi-strand
Terminal_Capacity_5	1x6mm²
Earth_Terminal_Capacity_1	6x1mm²
Earth_Terminal_Capacity_2	5×1.5mm²
Earth_Terminal_Capacity_3	3×2.5mm²
Earth_Terminal_Capacity_4	2x4mm² Multi-Strand
Earth_Terminal_Capacity_5	1x6mm²
Product_Class1	Must be earthed
Ambient_Operating_Temp	-5° to +40°C
Recommended_Location	Internal Use Only
Max_Installation_Altitude	2000m
Standard_Approval	BS EN 60669-1
Commodity_Code	85365080
Luckins_TSI	407519576
unit_weight	0
Uf_HAMInnerBoxQty	5
Uf_OuterBoxQty	50
Box_Fixing_Hole_Centres	60.3mm
Uf_HAMPlateFinish	Black Nickel
Uf_HAMFrameFinish	n/a
WEB_InsertType	Intermediate
WEB_NumberofGangs	1
MainInsertColour	Black Nickel
TrimColour	n/a
Fixing_Hole_Centres	Box Fixing = 60.3mm
Minimum_Wall_Box_Depth	35mm
IP_Rating	IP2XD
Plate_Finish	Black Nickel
Concealed	Concealed
Voltage	220/250V AC
