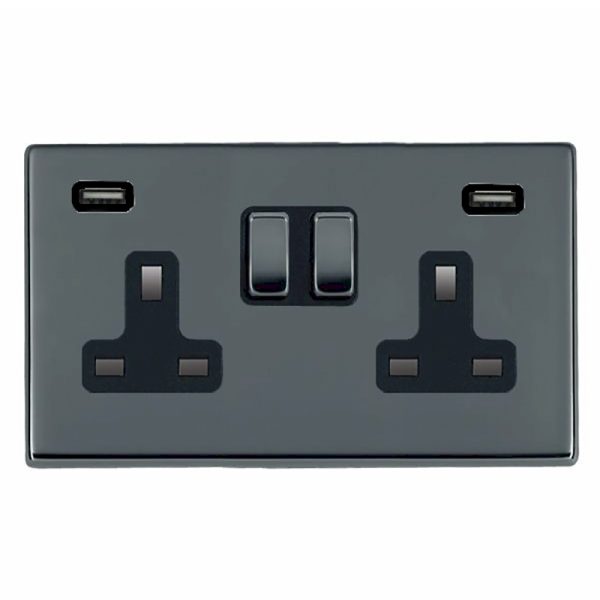

Hartland G2 Black Nickel 2 gang 13A Double Pole Switched Socket with 2 USB Ultra Outlets 2x2.4A Black Nickel/Black

Description

Hartland G2 Black Nickel 2 gang 13A Double Pole Switched Socket with 2 USB Ultra Outlets 2×2.4A Black Nickel/Black

Width	144.4mm
Height	87.4mm
Weight	260 GR
Depth	4.65mm
InsertType	2 gang 13A Double Pole Switched Socket with 2 USB Outlets 2×2.4A (4.8A Total)
Insert_Finish	Black Nickel/Black
Uf_HAM_Plate_Range	Hartland G2
PlateFinish	Hartland G2 Black Nickel
EAN_13_Barcode	5.05116E+12
Dimensions_Nominal	Double: Height = 87.4mm Width = 144.4mm Depth = 4.65mm
Switched_Poles	Double
Current_Rating	13 Amp, USB 2 x 2.4A
Max_Load	13 Amp, USB = 2.4A X 2
Mains_Frequency	50/60Hz
Contact_Gap_Minimum	3mm
Terminal_Capacity_1	3×2.5mm²
Terminal_Capacity_2	3x4mm²
Terminal_Capacity_3	2x6mm² Multi-Strand
Earth_Terminal_Capacity_1	3×2.5mm²
Earth_Terminal_Capacity_2	3x4mm²
Earth_Terminal_Capacity_3	2x6mm² Multi-Strand
Product_Class1	Must be earthed
Ambient_Operating_Temp	-15°C to +40°C
Recommended_Location	Internal Use Only
Max_Installation_Altitude	2000m
Standard_Approval	BS1363 BS EN 62368
Commodity_Code	85366990
Luckins_TSI	407517536
unit_weight	260
Uf_HAMInnerBoxQty	5
Uf_OuterBoxQty	20
Box_Fixing_Hole_Centres	120.6mm
Uf_HAMPlateFinish	Black Nickel
Uf_HAMFrameFinish	n/a
WEB_InsertType	Double Pole
WEB_NumberofGangs	2
MainInsertColour	Black Nickel
TrimColour	Black
Fixing_Hole_Centres	Box Fixing = 120.6mm
Minimum_Wall_Box_Depth	35mm
IP_Rating	IP2XD
Plate_Finish	Black Nickel
Concealed	Concealed
Voltage	180/250V AC USB = 5V
