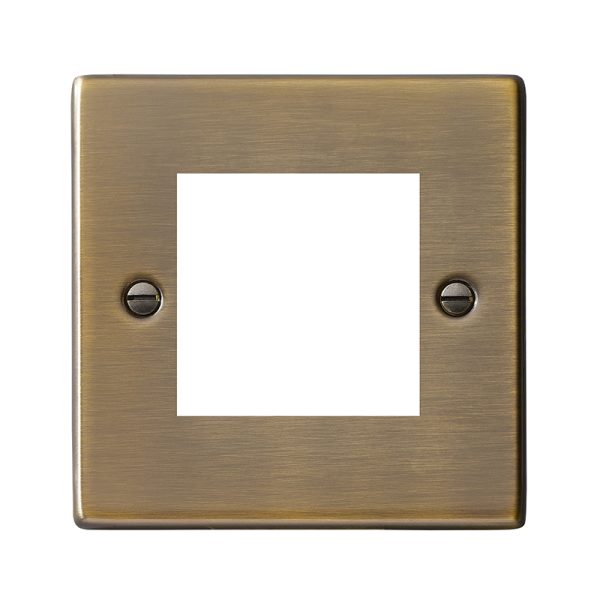

Hartland EuroFix Antique Brass Single Plate complete with 2 EuroFix Apertures 50x50mm and Grid

Description

Width	88.0mm
Height	88.0mm
Weight	77 GR
Depth	5.0mm
InsertType	2 gang EuroFix 50x50mm Apertured Plate with Grid
Insert_Finish	N/A
Uf_HAM_Plate_Range	Hartland EuroFix
PlateFinish	Hartland EuroFix Antique Brass
EAN_13_Barcode	5.02869E+12
Dimensions_Nominal	Single: Height = 88.0mm Width = 88.0mm Depth = 5.0mm
Switched_Poles	N/A
Current_Rating	Insert Specific
Max_Load	Insert Specific
Contact_Gap_Minimum	N/A
Earth_Terminal_Capacity_1	5x1mm²
Earth_Terminal_Capacity_2	4×1.5mm²
Earth_Terminal_Capacity_3	3×2.5mm²
Earth_Terminal_Capacity_4	1x4mm² Multi-strand
Earth_Terminal_Capacity_5	1x6mm²
Product_Class1	Face plate must be earthed
Recommended_Location	Internal Use Only
Max_Installation_Altitude	2000m
Standard_Approval	N/A
Additional_Notes	See EuroFix for a full range of inserts. Plates must be Earthed via the Earth Tag.
Commodity_Code	73269098
Luckins_TSI	387359801
unit_weight	77
Uf_HAMInnerBoxQty	10
Uf_OuterBoxQty	100
Box_Fixing_Hole_Centres	60.3mm
Grid_Fixing_Hole_Centres	N/A
Uf_HAMPlateFinish	Antique Brass
Uf_HAMFrameFinish	n/a
WEB_InsertType	Plate
WEB_NumberofGangs	2
MainInsertColour	N
TrimColour	A
Fixing_Hole_Centres	Box Fixing = 60.3mm Grid Fixing = N/A
Minimum_Wall_Box_Depth	As Per Inserts
IP_Rating	N/A
Plate_Finish	Antique Brass
Visible	Visible
Voltage	Insert Specific
