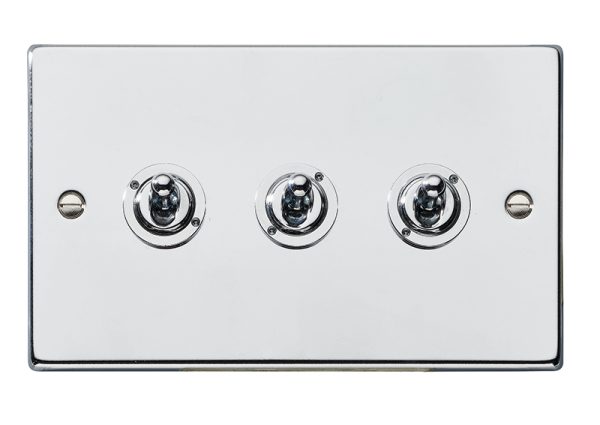

Hartland Bright Chrome 3 gang 20AX 2 Way Toggle Bright Chrome

Description

Width	144.5mm
Height	88.0mm
Depth	5.0mm
InsertType	3 gang 20AX 2 Way Toggle
Insert_Finish	Bright Chrome
Uf_HAM_Plate_Range	Hartland Box
PlateFinish	Hartland Box Bright Chrome
EAN_13_Barcode	5.02869E+12
Dimensions_Nominal	Double: Height = 88.0mm Width = 144.5mm Depth = 5.0mm
Switched_Poles	Single
Current_Rating	20AX
Max_Load	20 Amp inductive
Mains_Frequency	50Hz
Contact_Gap_Minimum	3mm
Terminal_Capacity_1	5x1mm²
Terminal_Capacity_2	4×1.5mm²
Terminal_Capacity_3	2×2.5mm²
Terminal_Capacity_4	2x4mm² Multi-strand
Terminal_Capacity_5	1x6mm²
Earth_Terminal_Capacity_1	6x1mm²
Earth_Terminal_Capacity_2	5×1.5mm²
Earth_Terminal_Capacity_3	3×2.5mm²
Earth_Terminal_Capacity_4	2x4mm² Multi-Strand
Earth_Terminal_Capacity_5	1x6mm²
Product_Class1	Must be earthed
Ambient_Operating_Temp	-5° to +40°C
Recommended_Location	Internal Use Only
Max_Installation_Altitude	2000m
Standard_Approval	BS EN 60669-1
Commodity_Code	85365080
Luckins_TSI	386902958
unit_weight	0
Uf_HAMInnerBoxQty	3
Uf_OuterBoxQty	30
Box_Fixing_Hole_Centres	120.6mm
Grid_Fixing_Hole_Centres	N/A
Uf_HAMPlateFinish	Bright Chrome
Uf_HAMFrameFinish	n/a
WEB_InsertType	2 Way
WEB_NumberofGangs	3
MainInsertColour	Bright Chrome
TrimColour	n/a
Fixing_Hole_Centres	Box Fixing = 120.6mm Grid Fixing = N/A
Minimum_Wall_Box_Depth	35mm
IP_Rating	IP2XD
Plate_Finish	Bright Chrome
Visible	Visible
Voltage	220/250V AC
