Linea-Scala CFX Satin Nickel Frame/Satin Steel Front Shaver Dual Voltage Unswitched Socket (Vertically Mounted) White

Description

Linea-Scala CFX Satin Nickel Frame/Satin Steel Front Shaver Dual Voltage Unswitched Socket (Vertically Mounted) White

Additional information

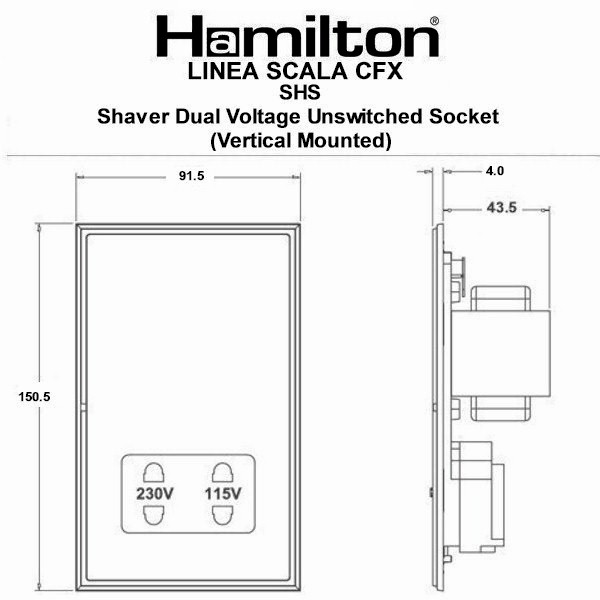

Width	91.5mm
Height	150.5mm
Depth	4.0mm
InsertType	Shaver Dual Voltage Unswitched Socket (Vertically Mounted)
Insert_Finish	White
Uf_HAM_Plate_Range	Linea-Scala CFX Vertical
PlateFinish	Linea-Scala CFX Vertical Satin Nickel Frame/Satin Steel Front
EAN_13_Barcode	5.02E+12
Dimensions_Nominal	Double: Height = 150.5mm Width = 91.5mm Depth = 4.0mm
Switched_Poles	None
Current_Rating	20VA
Max_Load	200/250V input; 115/230V 20VA output
Mains_Frequency	50Hz
Contact_Gap_Minimum	None
Terminal_Capacity_1	5 x1mm²
Terminal_Capacity_2	4×1.5mm²
Terminal_Capacity_3	3×2.5mm²
Terminal_Capacity_4	2x4mm² Multi-strand
Terminal_Capacity_5	1x6mm²
Earth_Terminal_Capacity_1	9x1mm²
Earth_Terminal_Capacity_2	6×1.5mm²
Earth_Terminal_Capacity_3	4×2.5mm²
Earth_Terminal_Capacity_4	2x4mm² Multi-Strand
Earth_Terminal_Capacity_5	1x6mm²
Product_Class1	Must be earthed
Ambient_Operating_Temp	-5° to +40°C
Recommended_Location	Internal Use Only
Max_Installation_Altitude	2000m
Standard_Approval	BS EN 61558-2-5 + BS 4573
Additional_Notes	Must be mounted vertically. Shuttered :Yes. Box Depth 47mm
Commodity_Code	85366990
Luckins_TSI	391718810
unit_weight	0
Uf_HAMInnerBoxQty	1
Uf_OuterBoxQty	20
Box_Fixing_Hole_Centres	120.6mm
Grid_Fixing_Hole_Centres	CFX Clips
Uf_HAMPlateFinish	Satin Steel
Uf_HAMFrameFinish	Satin Nickel
WEB_InsertType	Shaver Socket
WEB_NumberofGangs	1
MainInsertColour	White
TrimColour	n/a
Fixing_Hole_Centres	Box Fixing = 120.6mm Grid Fixing = CFX Clips
Minimum_Wall_Box_Depth	47mm
IP_Rating	IP2XD
Plate_Finish	Satin Nickel Frame/Satin Steel Front
Concealed	Concealed
Voltage	220/250V AC
