Sheer G2 Anthra Gray 1 gang RJ45 CAT 6 Outlet - Unshielded Quartz Grey

Description

Sheer G2 Anthra Gray 1 gang RJ45 CAT 6 Outlet – Unshielded Quartz Grey

Width	85mm
Height	85mm
Depth	1.5mm + 2.7mm Gasket
InsertType	1 gang RJ45 CAT 6 Outlet – Unshielded
Insert_Finish	Quartz Grey
Uf_HAM_Plate_Range	Sheer G2
PlateFinish	Sheer G2 Anthra Gray
EAN_13_Barcode	5.02E+12

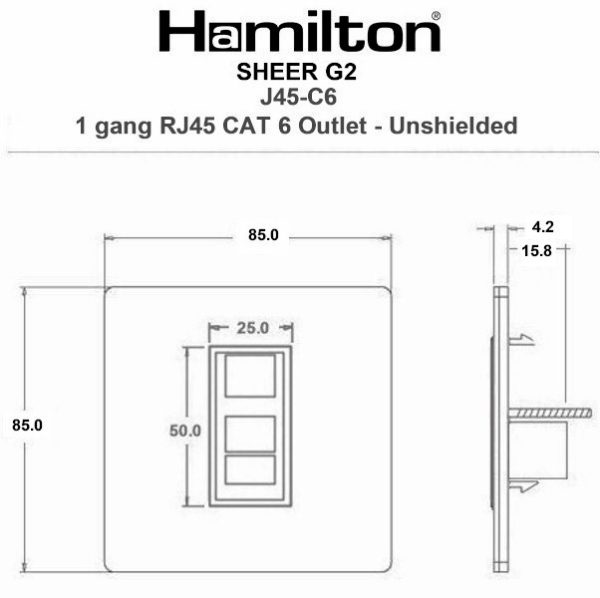

Dimensions_Nominal	Single: Height = 85mm Width = 85mm Depth = 1.5mm + 2.7mm Gasket
Switched_Poles	N/A
Current_Rating	n/a
Contact_Gap_Minimum	N/A
Earth_Terminal_Capacity_1	5x1mm²
Earth_Terminal_Capacity_2	4×1.5mm²
Earth_Terminal_Capacity_3	3×2.5mm²
Earth_Terminal_Capacity_4	1x4mm² Multi-strand
Earth_Terminal_Capacity_5	1x6mm²
Product_Class1	Must be earthed (ref BS7671 415.2.1)
Ambient_Operating_Temp	-5° to +40°C
Recommended_Location	Internal Use Only
Max_Installation_Altitude	2000m
Standard_Approval	N/A
EuroFix_Additional_Notes	Can be used in both EIA 568A and EIA 568B wiring schedules
Commodity_Code	85176990
Luckins_TSI	435715669
unit_weight	0
Uf_HAMInnerBoxQty	10
Uf_OuterBoxQty	100
Box_Fixing_Hole_Centres	60.3mm
Grid_Fixing_Hole_Centres	CFX Clips
Uf_HAMPlateFinish	Anthra Gray
Uf_HAMFrameFinish	n/a
WEB_InsertType	RJ45 CAT 6 – Unshielded
WEB_NumberofGangs	1
MainInsertColour	Quartz Grey
TrimColour	n/a
Fixing_Hole_Centres	Box Fixing = 60.3mm Grid Fixing = CFX Clips
Minimum_Wall_Box_Depth	35mm
IP_Rating	IP2XD
Plate_Finish	Anthra Gray
Concealed	Concealed
