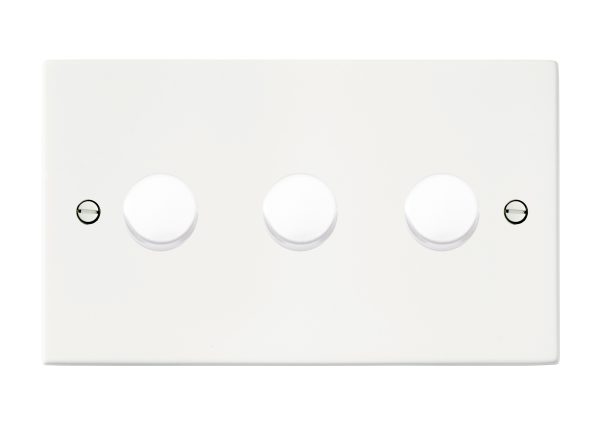

Sheer Matt White 3g Rotary Companion Controller Matt White

Description

Width	146.0mm
Height	86.0mm
Depth	1.5mm
Wattage	N/A
InsertType	3g Rotary Companion Controller
Insert_Finish	Matt White
Uf_HAM_Plate_Range	Sheer Box
PlateFinish	Sheer Box Matt White
EAN_13_Barcode	5.05E+12
Dimensions_Nominal	Double: Height = 86.0mm Width = 146.0mm Depth = 1.5mm
Switched_Poles	Single
Current_Rating	n/a
Max_Load	N/A
Mains_Frequency	50Hz
Terminal_Capacity_1	2X1mm²
Terminal_Capacity_2	2×1.5mm²
Earth_Terminal_Capacity_1	5x1mm²
Earth_Terminal_Capacity_2	4×1.5mm²
Earth_Terminal_Capacity_3	3×2.5mm²
Earth_Terminal_Capacity_4	1x4mm² Multi-strand
Earth_Terminal_Capacity_5	1x6mm²
Product_Class1	Face plate must be earthed
Ambient_Operating_Temp	-5°C to +40°C
Recommended_Location	Internal Use Only
Max_Installation_Altitude	2000m
Standard_Approval	BS EN 60669-2-1
Additional_Notes	Can be used with the L-SD250MW, L-SD-INLINE-250W-WIFI or L-INLINE-250W-RF
Commodity_Code	85365080
Luckins_TSI	436543128
unit_weight	0
Uf_HAMInnerBoxQty	5
Uf_OuterBoxQty	50
Box_Fixing_Hole_Centres	120.6mm
Grid_Fixing_Hole_Centres	N/A
Uf_HAMPlateFinish	Matt White
Uf_HAMFrameFinish	n/a
WEB_InsertType	Rotary 2 Way
WEB_NumberofGangs	1
MainInsertColour	Matt White
TrimColour	n/a
Fixing_Hole_Centres	Box Fixing = 120.6mm Grid Fixing = N/A
Minimum_Wall_Box_Depth	35mm
IP_Rating	IP2XD
Plate_Finish	Matt White
Visible	Visible
Voltage	230V AC
