Cheriton Victorian Antique Brass 1 gang 10AX Push To Make/Push To Break Retractive Toggle Antique Brass

Description

Width	88.5mm
Height	88.5mm
Depth	7.5mm
InsertType	1 gang 10AX Push To Make/Push To Break Retractive Toggle
Insert_Finish	Antique Brass
Uf_HAM_Plate_Range	Cheriton Victorian Box
PlateFinish	Cheriton Victorian Box Antique Brass
EAN_13_Barcode	5.03E+12

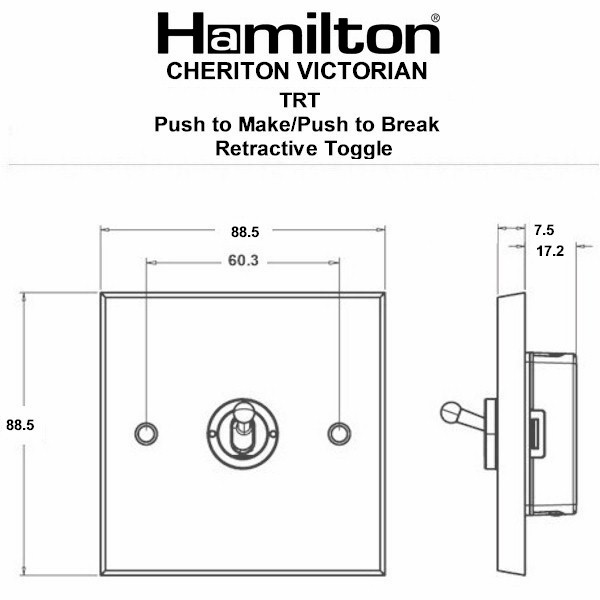

Dimensions_Nominal	Single: Height = 88.5mm Width = 88.5mm Depth = 7.5mm
Switched_Poles	Single
Current_Rating	10AX
Max_Load	10 Amp inductive
Mains_Frequency	50Hz
Contact_Gap_Minimum	3mm
Terminal_Capacity_1	5x1mm²
Terminal_Capacity_2	4×1.5mm²
Terminal_Capacity_3	2×2.5mm²
Terminal_Capacity_4	2x4mm² Multi-strand
Terminal_Capacity_5	1x6mm²
Earth_Terminal_Capacity_1	6x1mm²
Earth_Terminal_Capacity_2	5×1.5mm²
Earth_Terminal_Capacity_3	3×2.5mm²
Earth_Terminal_Capacity_4	2x4mm² Multi-Strand
Earth_Terminal_Capacity_5	1x6mm²
Product_Class1	Must be earthed
Ambient_Operating_Temp	-5° to +40°C
Recommended_Location	Internal Use Only
Max_Installation_Altitude	2000m
Standard_Approval	BS EN 60669-1
Commodity_Code	85365080
Luckins_TSI	386906666
unit_weight	0
Uf_HAMInnerBoxQty	5
Uf_OuterBoxQty	50
Box_Fixing_Hole_Centres	60.3mm
Grid_Fixing_Hole_Centres	N/A
Uf_HAMPlateFinish	Antique Brass
Uf_HAMFrameFinish	n/a
WEB_InsertType	Push To Make Retractive
WEB_NumberofGangs	1
MainInsertColour	Antique Brass
TrimColour	n/a
Fixing_Hole_Centres	Box Fixing = 60.3mm Grid Fixing = N/A
Min_Wall_Box_Depth	25mm
IP_Rating	IP2XD
Plate_Finish	Antique Brass
WEB_Fixing	Visible
Voltage	220/250V AC
