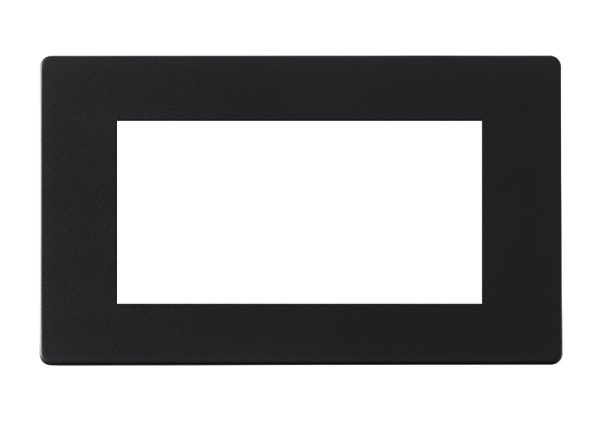

Hartland G2 EuroFix Matt Black Double Plate complete with 4 EuroFix Apertures 100x50mm and Grid

Description

Width	144.4mm
Height	87.4mm
Weight	130 GR
Depth	4.65mm
InsertType	4 gang EuroFix 100x50mm Apertured Plate with Grid
Insert_Finish	N/A
Uf_HAM_Plate_Range	Hartland G2 EuroFix
PlateFinish	Hartland G2 EuroFix Matt Black
EAN_13_Barcode	5.05116E+12
Dimensions_Nominal	Double: Height = 87.4mm Width = 144.4mm Depth = 4.65mm
Switched_Poles	N/A
Current_Rating	Insert Specific
Max_Load	Insert Specific
Contact_Gap_Minimum	N/A
Earth_Terminal_Capacity_1	5x1mm²
Earth_Terminal_Capacity_2	4×1.5mm²
Earth_Terminal_Capacity_3	3×2.5mm²
Earth_Terminal_Capacity_4	1x4mm² Multi-strand
Earth_Terminal_Capacity_5	1x6mm²
Product_Class1	Face plate must be earthed
Recommended_Location	Internal Use Only
Max_Installation_Altitude	2000m
Standard_Approval	N/A
Additional_Notes	See EuroFix for a full range of inserts. Plates must be Earthed via the Earth Tag.
Commodity_Code	73269098
Luckins_TSI	407516896
unit_weight	130
Uf_HAMInnerBoxQty	5
Uf_OuterBoxQty	50
Box_Fixing_Hole_Centres	120.6mm
Uf_HAMPlateFinish	Matt Black
Uf_HAMFrameFinish	n/a
WEB_InsertType	Plate
WEB_NumberofGangs	4
MainInsertColour	N
TrimColour	A
Fixing_Hole_Centres	Box Fixing = 120.6mm
Minimum_Wall_Box_Depth	As Per Inserts
IP_Rating	N/A
Plate_Finish	Matt Black
Concealed	Concealed
Voltage	Insert Specific
